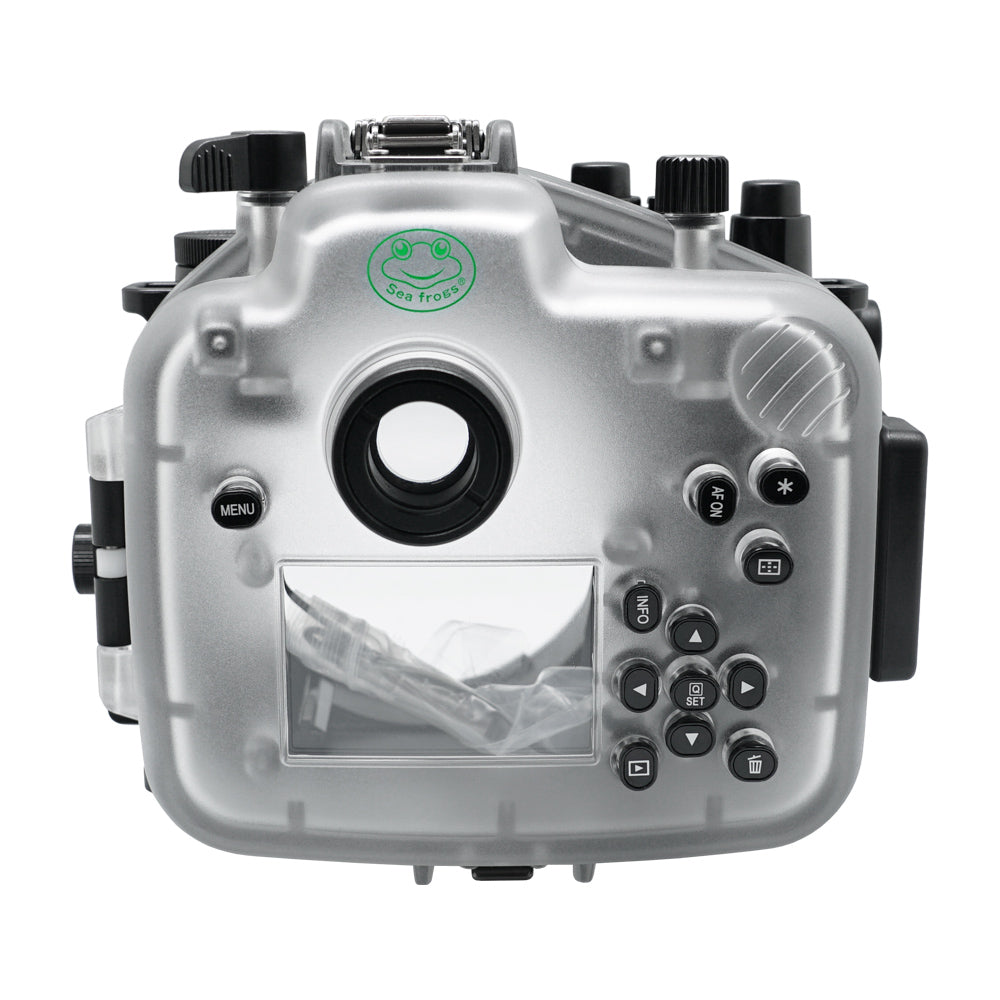

Seafrogs 40m/130ft Underwater Camera Housing for Canon EOS R

This underwater camera housing is intended for scuba diving and underwater photography. The new flat port with a diameter of 150mm/6" allows working with many wide-angle lenses without vignetting, such as the ones mentioned in the description. All button functions are available except the top LCD display light button, top scroll dial above the shutter release button, and touchscreen.

Compatible camera models:

• Canon EOS R

Please note Canon EOS R5/R6 cameras are not compatible with this unit.

Compatible lenses in 6" Dome port(Mount Adapter EF-EOS R - Required)

• Canon EF 16-35mm F4 L IS (Autofocus only,Zoom gear -)
• Canon EF 16-35mm F2.8 L II (Autofocus only,Zoom gear -)
• Canon EF 16-35mm F2.8 L III (Autofocus only,Zoom gear -)
• Canon EF 24-70mm F2.8 L II (Autofocus only,Zoom gear available -Included)Ideally to work at 24mm
• Canon EF 24-105mm F4 L IS(Autofocus only, Zoom gear available -Included)Ideally to work at 24mm
• Canon EF 24mm F1.4 L II USM (Autofocus only, No zoom gear available)
• Canon RF 50mm f/1.2L USM
• Canon RF 15-35 f/2.8L IS USM (Zoom gear available -Included)
• Canon RF 24-105mm f/4L IS USM (Zoom gear available -Included)Please note that this zoom gear is not compatiblewith the Canon RF 24-105mm f/4-7.1 IS USMlens.

Materials:

• Polycarbonate
• ABS plastic
• Multi-coated optical glass
• Stainless steel
• EPDM rubber
• O'ring sealed buttons with a spring-loaded mechanism to protect your camera properly

Key features:

• Inbuilt leak detection sensor
• Interchangeable port system
• Optical viewfinder
• Synchro cable port (5 pin Nikonos type)
• Fiber-optic ports
• Stainless steel mounting plates (2 x 1/4" -20)
• VPS-100 vacuum system port

In order to connect an external strobe with this housing, it will require to use a Dual 5-Pin Sync Cord () or a Single 5-Pin Sync Cord ().

Buoyancy:

• Extremely positive ( Hand strap required )

Package Includes:

• Underwater housing
• 6" Dry dome port V.13
• Hot shoe flash trigger for fiber-optic cable
• Zoom gear forEF 24-70mm F2.8 L II / EF 24-105mm F4 L IS
• Zoom gear for RF 15-35 f2.8L / RF 24-105mm f4L IS USM
• Wrist strap
• Shoulder strap
• Spare O'ring
• User manual
• Silicone grease (5ml)
