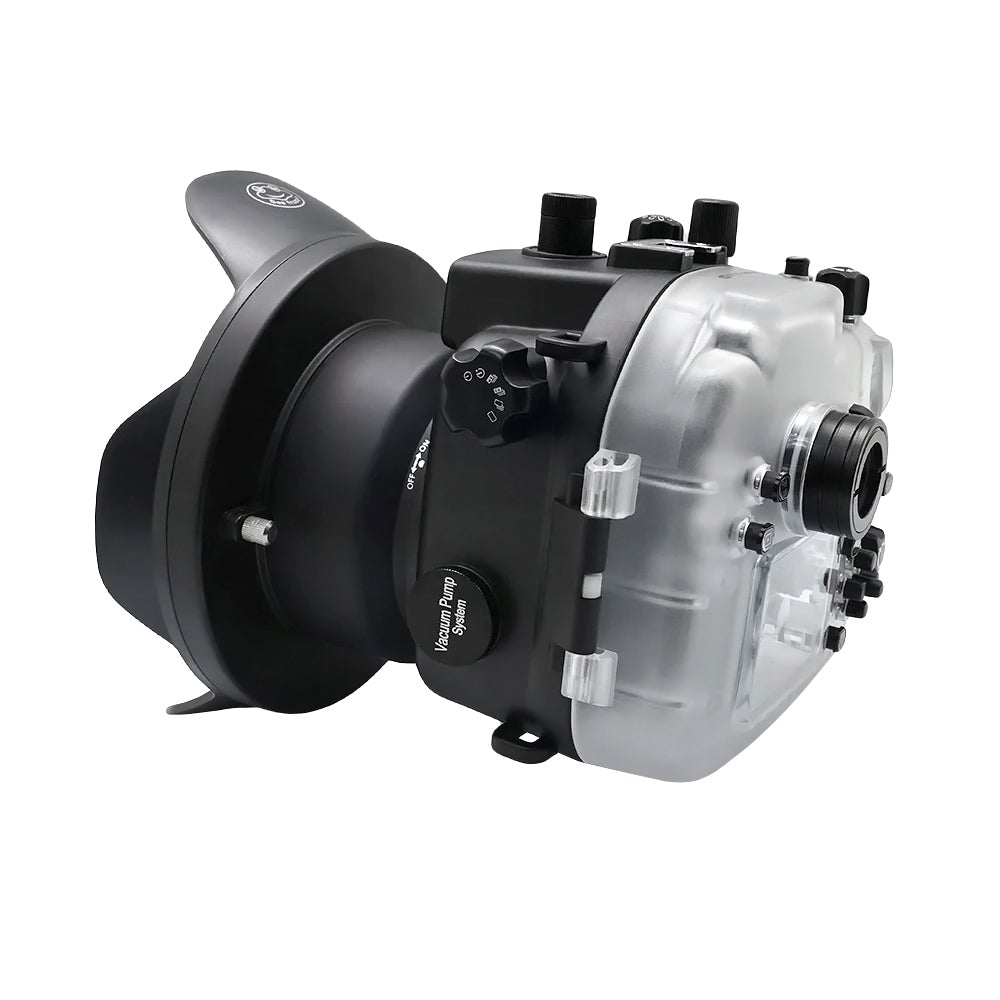

Seafrogs 40m/130ft Underwater Camera Housing for Panasonic GH5 & GH5 S& GH5II

Compatible lenses in Optical GlassDry dome port

• Panasonic Lumix G Vario 7-14mm F4 ASPH (Autofocus only, Manual zoom not available)
• Panasonic Leica DG Vario-Elmarit 8-18mm F2.8-4.0 ASPH(Autofocus only, Manual zoom not available)
• Panasonic Leica DG Vario-Elmarit 12-60mm F2.8-4.0 ASPH Power OIS(Autofocus only, Manual zoom not available)
• Panasonic Lumix G X Vario 12-35mm f/2.8 II ASPH. POWER OIS(Autofocus only, Manual zoom not available)
• Panasonic Lumix G Vario 14-140mm F3.5-5.6 II ASPH Power OIS(Autofocus only, Manual zoom not available)
• Panasonic Leica DG Nocticron 42.5mm f/1.2 ASPH. POWER OIS(Autofocus only)
• Olympus M.Zuiko Digital ED 7-14mm F2.8 PRO(Autofocus only, Manual zoom not available)
• Panasonic Leica DG Summilux 12mm f/1.4 ASPH (Autofocus only)
• Panasonic Leica DG Summilux 15mm f/1.7 ASPH (Autofocus only)

Compatible lenses in Standard port*

• Panasonic Lumix G Macro 30mm F2.8 ASPH Mega OIS (Autofocus only)
• Panasonic Leica DG Macro-Elmarit 45mm F2.8 ASPH OIS (Autofocus only)

*We recommend using the standard port for macro lenses.

Seafrogs Underwater housing is a new generation of lightweight and affordable product for any underwater photographer, surf photographer, and other enthusiasts of water-related photography or sports. This unit will keep your camera dry and functional in all weather conditions.

Important!The zoom function is not available.Manual focus is not available (set lens to autofocus).Focal length must set prior to inserting the camera inside the case and focus mode must be set toauto.

Materials:

• Polycarbonate
• ABS plastic
• Clear plate glass
• Stainless steel
• EPDM rubber
• O'ring sealed buttons with a spring-loaded mechanism to protect your camera properly
• Optical Glass Dry dome port

Key features:

• 67mm Threaded port allows for 67mm wet accessories
• Mounting plate 1/4" threaded
• Inbuilt leak detection sensor
• Interchangeable port
• Viewfinder access
• Fiber-optic ports
• Sync port

In order to connect an external strobe with this housing, it will require to use a Dual 5-Pin Sync Cord () or a Single 5-Pin Sync Cord ().

Buoyancy:

• Extremely positive ( Hand strap required )

Package Includes:

• Underwater housing
• Standard port
• Optical Glass Dry Dome port V.5
• Wrist strap
• Shoulder strap
• Spare O'ring
• User manual
• Silicone grease (5ml)
