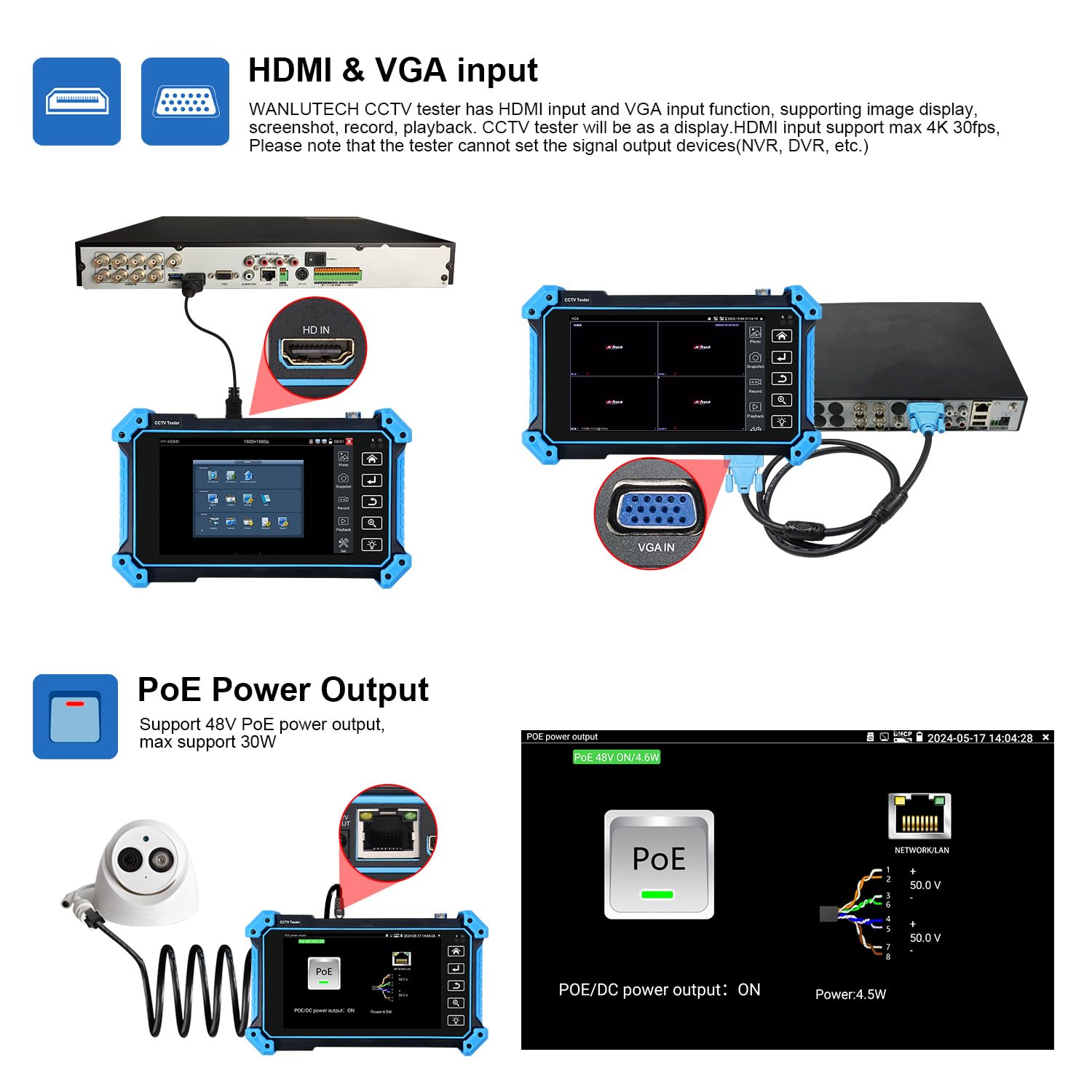

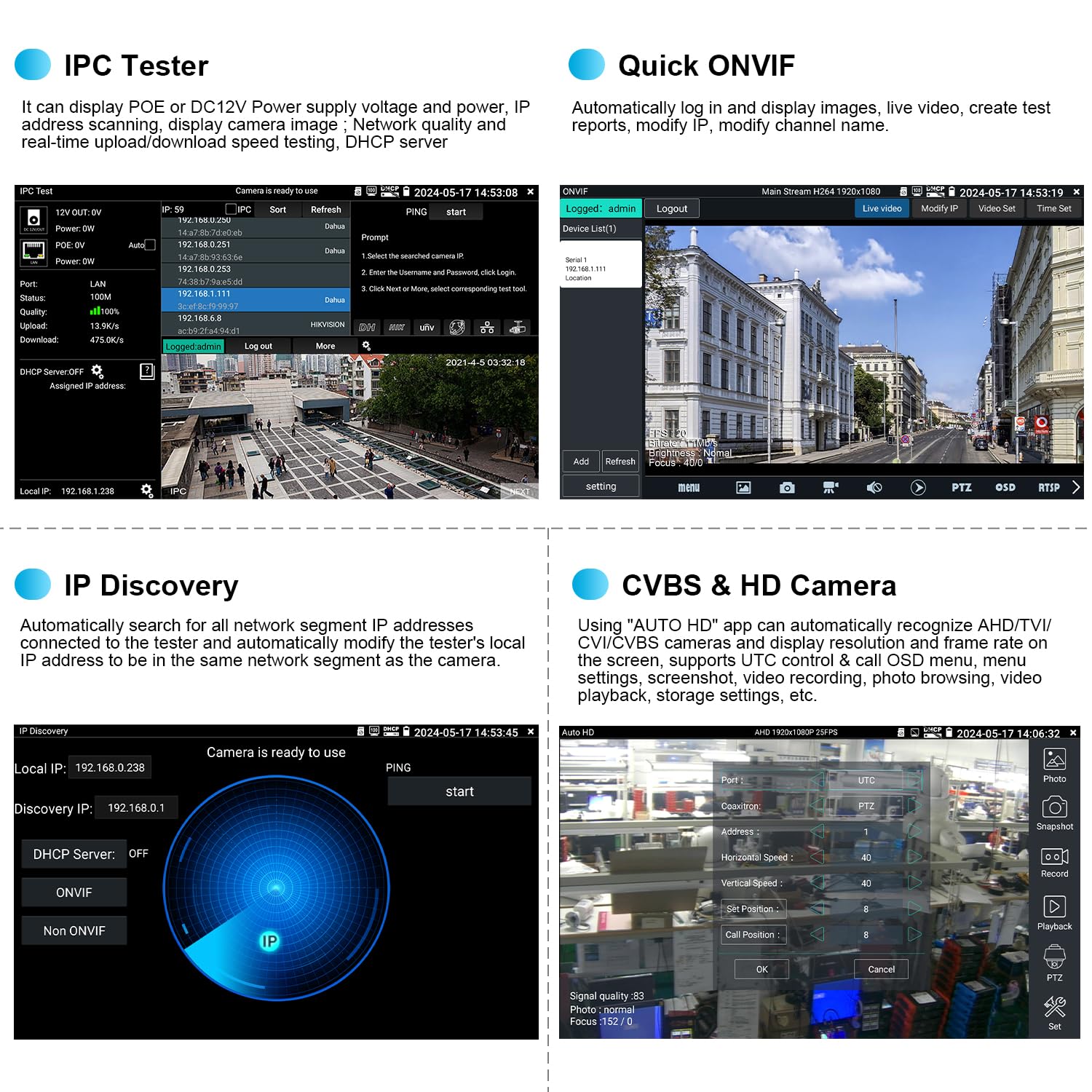

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Max 4K 12MP IP camera test Support max 4K IP camera test. IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK. Rapid Video,auto view the video, create testing report. HIK/DH camera test tool, support modify HIK/DH camera's user name, password, IP parameters,etc. CVBS 1 channel BNC input, NTSC/PAL (Auto adapt). PTZ control, Support RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, for Samsung, for Panasonic etc. HD coaxial test ( Only TVI 5.0 support coaxial audio test) Support 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control / call OSD menu. 8MP TVI/CVI/AHD camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu. Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu. HDMI input & VGA input Support 1 channel HDMI input, support 4K 30FPS. Support 1 channel VGA input, support 1920 x 1200P 60FPS. PoE/Power input/Power output PoE power output, 48V PoE power output, max power 30W. DC12V/1A power input. DC12V/3A power out, supply temporarily power for the camera. Power management Display DC 12V input & output voltage and power in real time. Cable test Digital Cable tracer can search BNC cable, network cable and telephone cable from the mess of cables. RJ45 Cable TDR Test: it can test cable pair status, length(180m), attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal. Battery/Screen/CPU RAM EMMC Built-in 7.4V Lithium-ion battery,3350mAh, 27.79Wh. 5.4 inches IPS touch screen. 1.2GHz 4-core CPU, 1GB RAM, 8GB FLASH(EMMC). Wi-Fi Built in WIFI, speeds 150M, display wireless camera image, support create WI-FI hotspot. Audio test 1 channel audio signal input, test whether sound normal. Network test tools Support trace route, Link monitor, DHCP server, port flashing, Ping test, IP scan, etc. TesterPlay Screen projection: tester, mobile phone and PC display at the same time (only for android version mobile phone) Operation language OSD menu language: English, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish Portuguese, Czech etc Common tools Built-in flashlight, calculator, audio recorder, audio player, vedio player,and other common tools. Multiple Preview Multi-preview APP supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 32 simultaneous preview. Previous page Next page 1 SDI AHD CVI TVI Test 2 4K IP Camera Tester 3 IP Discovery / ONVF 4 HIK / DH Camera Test Tool 5 Multiple Preview Mode Previous page Next page 1 Cable Tracer/Cable Tester 2 RJ45 Cable TDR Test 3 HDMI input & VGA input 4 Network Test Tools 5 Digital Cable Tracer Previous page Next page 1 PoE Power Output 2 Audio test & Common Tools 3 App Update/wi-fi Hotspot 4 TesterPlay 5 Packing List WANLUTECH CCTV Tester 5100/5200 series IPC-5200C Plus Add to Cart IPC-5200 Plus Add to Cart IPC-5100C Plus Add to Cart IPC-5100 Plus Add to Cart Customer Reviews 4.1 out of 5 stars 20 5.0 out of 5 stars 2 4.0 out of 5 stars 2 — Price $329.99$329.99 $305.99$305.99 $299.99$299.99 $275.99$275.99 8MP SDI camera test ✔ ✔ ✘ ✘ Digital Cable tracer ✔ ✘ ✔ ✘ 8MP AHD/TVI/CVI camera test ✔ ✔ ✔ ✔ IP camera test 4k/H.265/H.264 ✔ ✔ ✔ ✔ HDMI input 4K 30 FPS ✔ ✔ ✔ ✔ VGA input ✔ ✔ ✔ ✔ DC12V 3A /48V PoE power output ✔ ✔ ✔ ✔ RJ45 cable tdr tester ✔ ✔ ✔ ✔ UTP cable tester ✔ ✔ ✔ ✔
