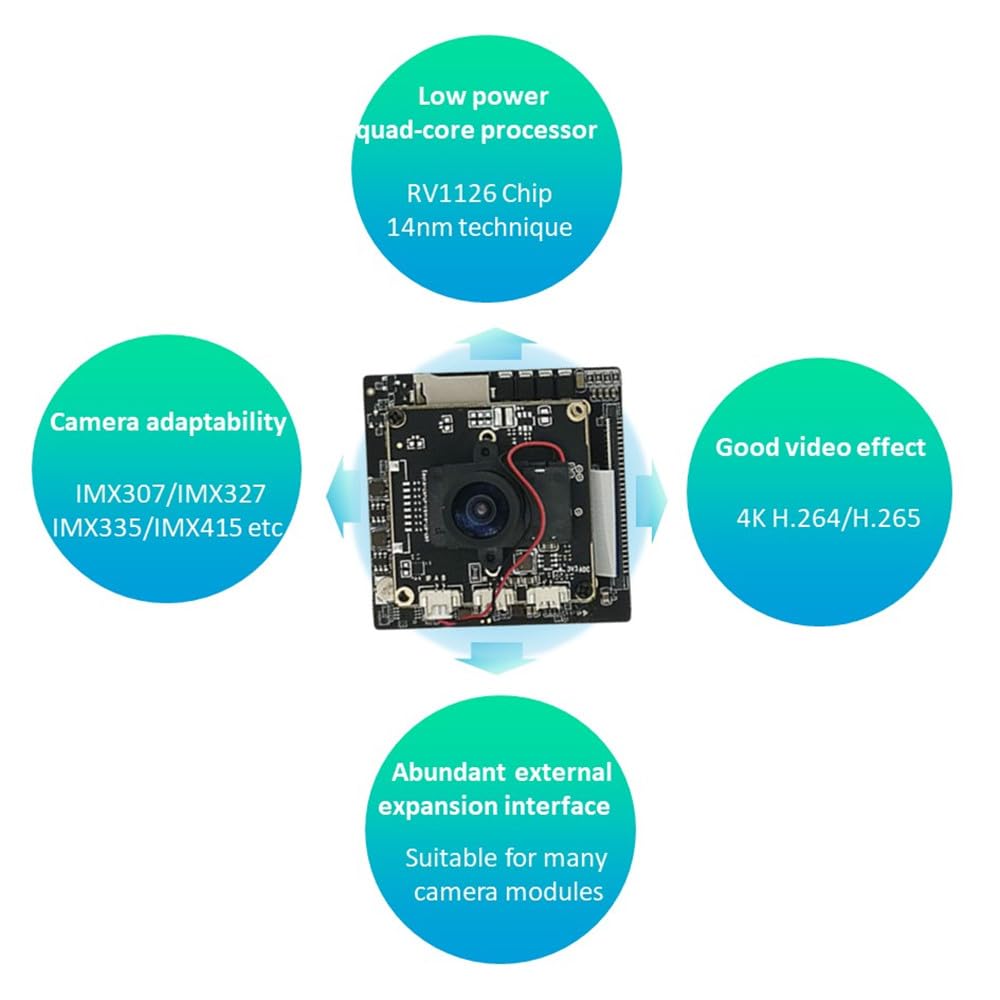

Applications Rockchip RV1126 is widely used in face recognition, gesture recognition, gateaccess control, smart security, smart lP camera, smart doorbell/peephole, selfservice terminals, smart finance, smart construction, smart travel and otherindustries. When TC-RV1126 IPC 50 Board is very good for smart security, smart IP camera, face recognition, gesture recognition. RV1126 IPC 50 Parameter SOC Rockchip RV1126 RAM DDR3，32Bit，1GB ROM 8GB eMMC NPU 2.0 TOPS，support RKNN AI frame Sensor Support 200/300/400/500/800/1200w px Sensor，Binocular CSI 4lane MIPI CSI，4K@30fps， max monocular 1400W，binocular 500W@30fps mbps Self-adaption 10/100/1000Mbps，support MDIX Application Outdoors face recognition,lpr,and Capture;supports stereo cameras, low temperature MIC Simulation of omnidirectional MIC Photosensitive Select the configuration（ISP Night sensing function） LED White/IR Infrared Sensor IMX307/327，IMX335，IMX415，IMX334，GC2053，SC200AI，GC2093 Debug Debug uart TTL 3pin port RTC Cyclic charging RTC design, onboard RTC battery, support external battery mounting SPK 3W D sort PA WIFI IEEE 802.11b/g/n
